本公司銷售的德律設備均為二手設備，成色好，性能穩定。服務工程人員均在原廠有5年以上工作經驗，出貨前，我們會整體檢測，demo1-2個工作日再發貨。
出租設備，服務保養，升級保固，均為我司工程人員處理；
出售設備整機保固3個月，部分重要部件保固1年，若出保，我司配件備貨充足，可提供緊急維修。
買機/租機熱線：13776054406（手機/微信號）賈先生
特性：
? 優越的2D+3D檢測覆蓋率
? 四向數位條紋光投影
? 3D高度檢測范圍可高達40 mm
? 高速CoaXPress取像
? 可選配3D雷射模組
規格：
| Optical System | |
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 12 Mpix |
| Angle Camera | N/A |
| Imaging Resolution | 10 μm, 15 μm (factory setting) |
| Lighting | Multi-phase true color LED, Coaxial lighting |

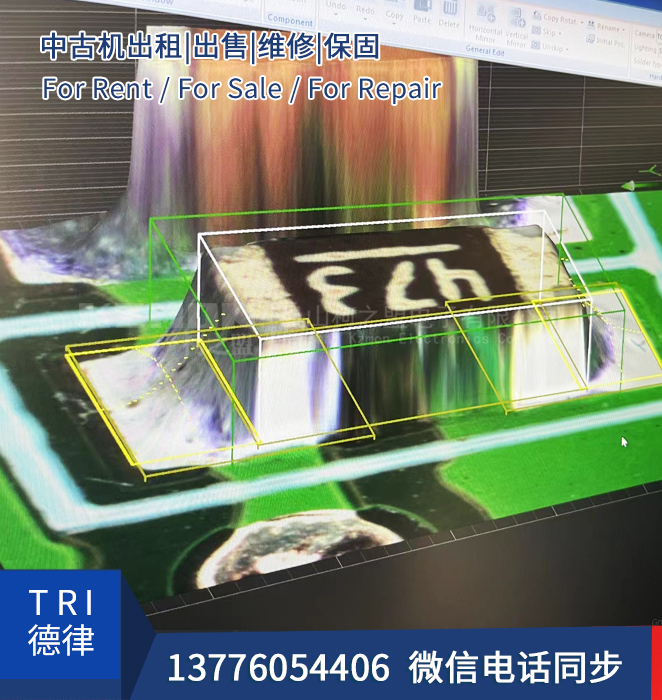

| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range |
0-40 mm* * Requires Z axis control. The default 3D height is 0 – 20mm |
| Inspection Performance | |
| Imaging Speed |
12 Mpix@ 10 μm: 13.5 cm2/sec 12 Mpix@ 10 μm: 23 cm2/sec with optional CoaXPress 12 Mpix@ 15 μm: 30 cm2/sec 12 Mpix@ 15 μm: 50 cm2/sec with optional CoaXPress Note: Depending on component distribution |

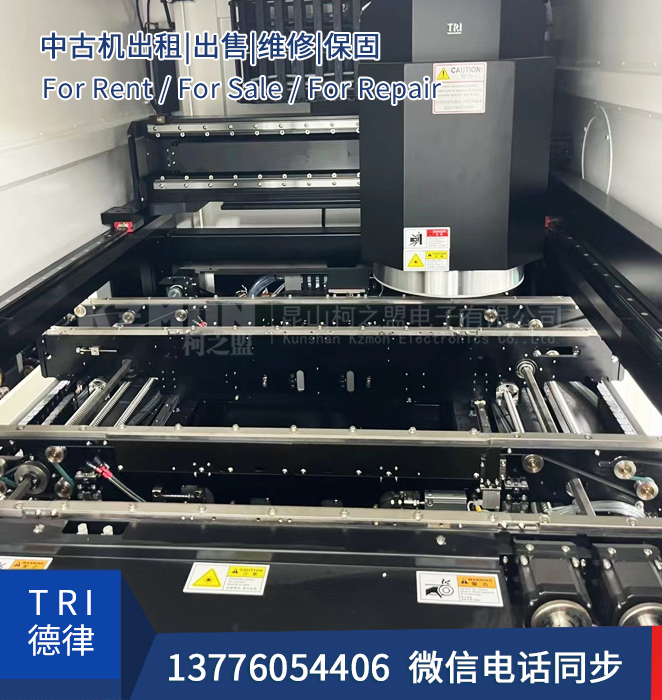

| Motion Table & Control | |

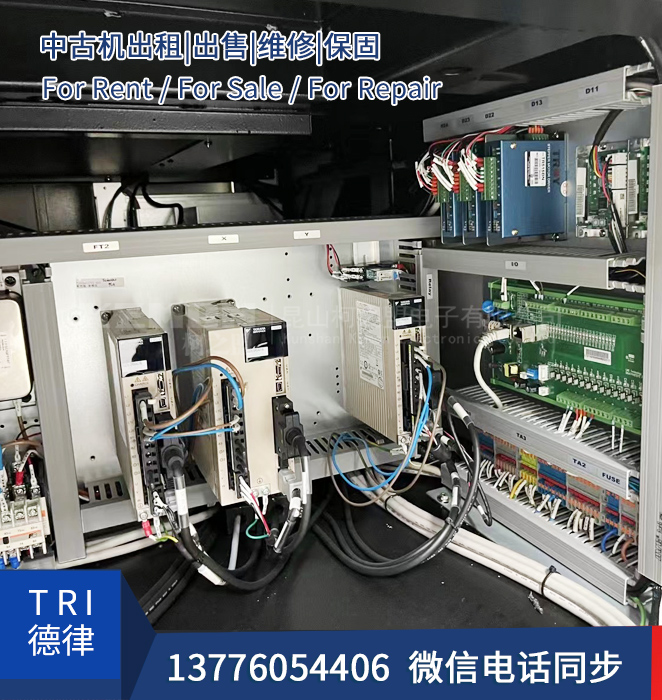

| X-Axis Control | Ballscrew + AC-servo controller (Linear motor optional) |
| Y-Axis Control | Dual driven ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller (optional) |
| X-Y Axis Resolution | 1 μm |
| Board Handling | |
| Max PCB Size |
TR7700QE: 510 x 460 mm TR7700L QE: 660 x 610 mm TR7700QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor |
Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component |
| Inspection Functions | |
| Component |
Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
| Solder |
Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
| Dimensions | |
| WxDxH |
TR7700QE: 1100 x 1730 x 1750 mm TR7700L QE: 1250 x 1880 x 1750 mm TR7700QE DL: 1100 x 1830 x 1750 mm Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7700QE: 920 kg TR7700L QE: 1170 kg TR7700QE DL: 950 kg |
